Abrasive Sectioning Machines
These industrial grade sectioning machines provide highly precise and accurate cuts for metallographic preparation
Abrasive Sectioning Machines
Clark Abrasive Sectioning Machines are utilized in the automotive, aerospace, heat treating and manufacturing industries as well as R&D. They provide precise sectioning for small to medium size work pieces, with blade capacities ranging from 8″ (204mm), 10″ (250mm), 12″ (305mm) and 14″ (355mm). These sectioning machines provide clean and consistent sections with far less deformation. Each come standard with a convenient storage compartment design with a built in coolant tank, along with built-in safety sensors within an interlocking hood, keeping users safety in mind.
Special Features
- Spindle design with high precision bearings, radial and axial loading capacities
- Safety sensor confirms when spindle stops allowing the top cover to be opened.
- Front and rear limit sensors control the cutting distance.
- Intuitive operation panel.
- Both manual and auto mode X axis hand wheel table control.
- Ampere meter displays load of cutting motor.

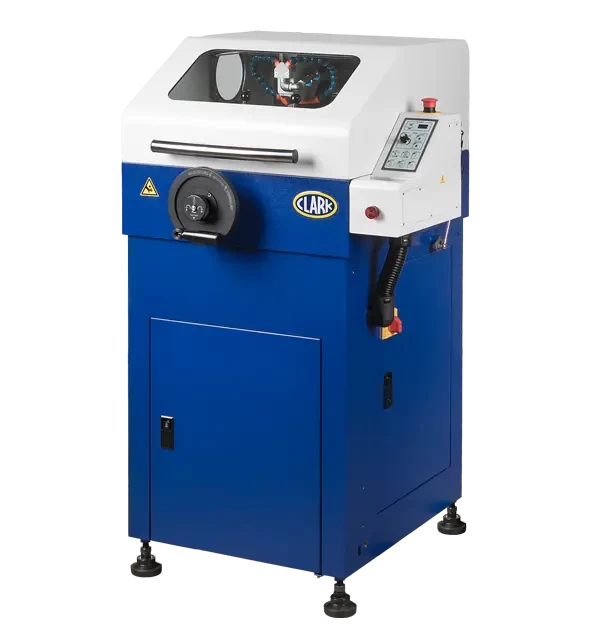

MODEL | CS-255A | CS-305A | CS-355A |
| MACHINE TYPE | Floor Standing | ||
| WORK PIECE CAPACITY | Max Φ70mm | Max Φ90mm | Max Φ100mm |
| CUT-OFF WHEEL | Φ255 | Φ305 | Φ355 |
| FEEDING DEVICE | Auto feed / Manual | Auto feed / Manual | Auto feed / Manual |
| CLAMPING VICE | Quick-Clamp ×2 | Right-Left moving distance 30mm | R/L vise capable of 40 mm left and right | ||
| CUTTING MOTOR | 2 Hp / 3Hp | 5 Hp | 7.5 Hp / 10 Hp |
| COOLANT MOTOR | 1/8 Hp | 1/8 Hp | 1/4 Hp |
| WATER TANK CAPACITY | 80 L | ||
| ILLUMINATION | LED Light | ||
| DIMENSIONS | 40" x 33.4" x 63" (1020 x 850 x 1600mm) | ||
| POWER SUPPLY | 480 VAC 3 Phase — 60Hz * Please specify power requirements. | ||
