Metallographic Machines & Equipment

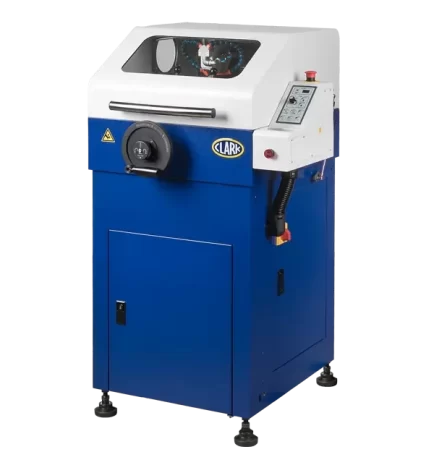

Abrasive Sectioning Machines

Spindle design with high precision bearings, radial and axial loading capacities
Safety sensor confirms when spindle stops allowing the top cover to be opened.
Front and rear limit sensors control the cutting distance.
Intuitive operation panel.
Both manual and auto mode X axis hand wheel table control.
Ampere meter displays load of cutting motor.

Upper mold head assembly provides smooth operation.
7″ color touch screen with preprogrammed settings and two user define settings
Color status bar with pressure, heat, cure and cool times displayed.
Rugged mold enclosure with integrated side dust extractor
Electro-hydraulic design for extremely quiet operation
Built in applications include Bakelite Epoxy and Thermoplastics mounts
Integrated dust exhaust system with HEPA filtration, ESD safe. (Optional)
Recirculation system with fan cooled radiator and stainless steel tank. (optional)

Precise rotational balance under the most intense force
Solid waterproof construction
Anti-leak main shaft for protection of bearings and electronics
Adjustable stainless steel water faucet
Color Touch Screen with friendly intuitive users interface
Central or Individual pressure applications can be selected
Includes one flexible gravity drip dispenser with options to add an additional auto dispenser
